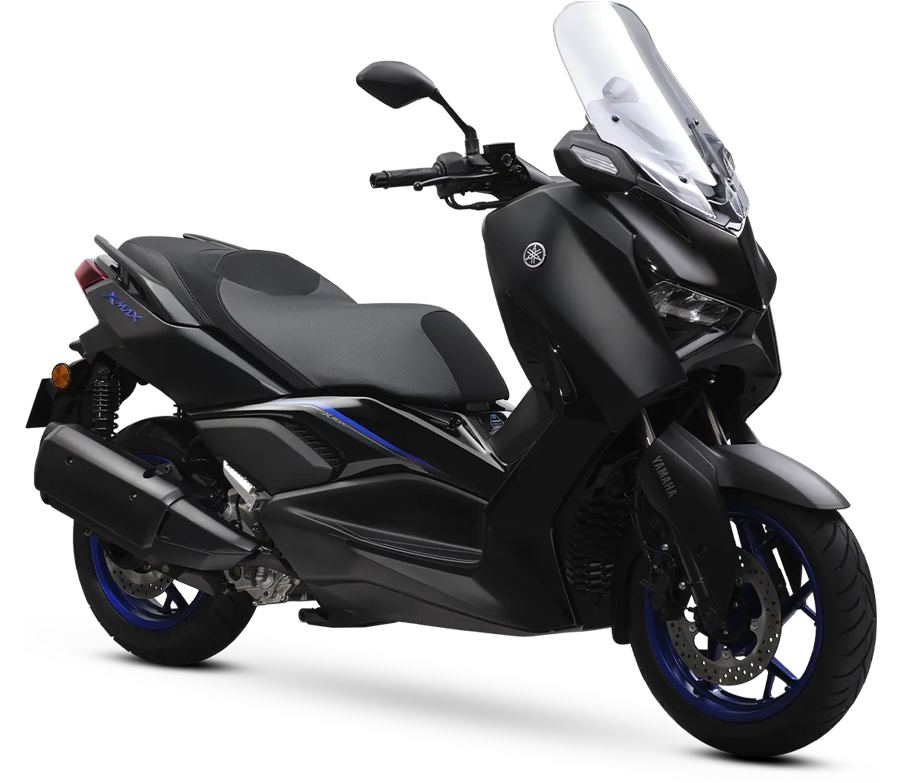

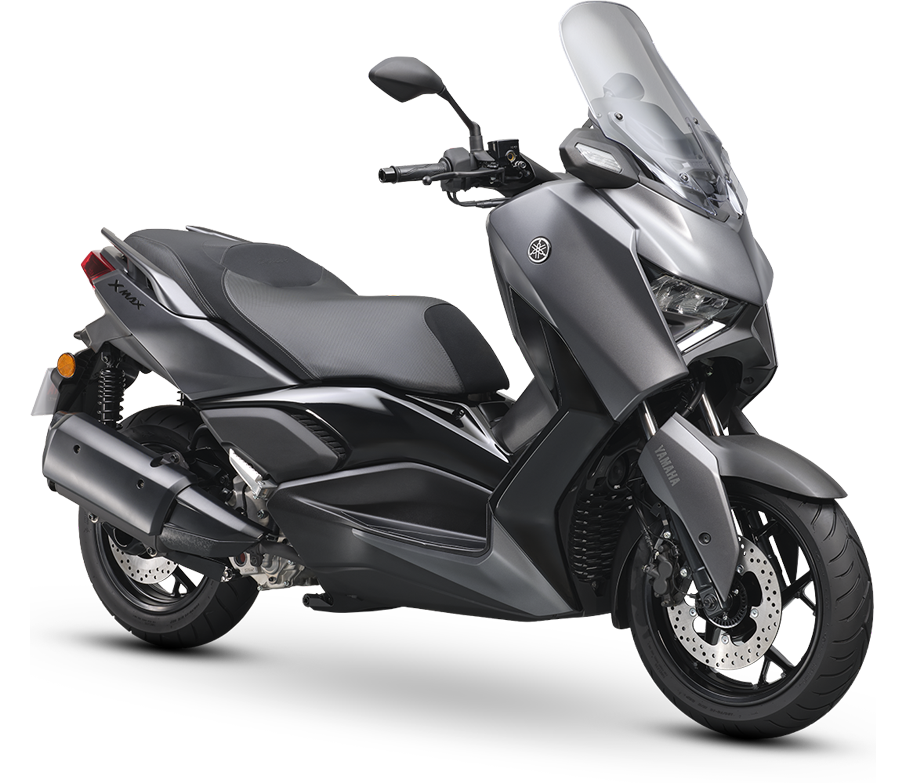

XMAX

The XMAX was designed using pure TMAX DNA. Following the signature boomerang motif, dynamic looks, and premium finish, this is a testament of luxurious performance. You can now experience a premium sensation and boundless capacity.

• Engine type: Liquid cooled 4 stroke,SOHC, 4 valve
• Displacement: 292 cm3
• Cylinder: Single Cylinder
• Bore x Stroke: 70.0 x 75.9 mm
• Compression Ratio: 10.9:1
• Maximum Output: 20.6 kW/7,250 rpm
• Maximum Torque: 29.0 N⋅m/5,750 rpm
• Starting System: Electric starter
• Lubrication: Semi Dry sump
• Engine Oil Capacity: 1.70 Liters
• Fuel Supply System: Fuel Injection
• Primary/Secondary Reduction Ratio: 1.000/7.590 (48/18 x 37/13)
• Clutch Type: Dry, Centrifugal Shoe
• Final Drive: Gear
• Transmission Type: V Belt Automatic
• Gear Ratios: 2.386 0.746 variable speed
• Overall length/width/height: 2,185 mm X 775 mm x 1,415 mm to 1,465 mm (Adjustable Windshield)
• Seat height: 795 mm
• Wheelbase: 1,540 mm
• Mininum ground clearance: 135 mm
• Weight (with oil and full fuel tank): 179 kg
• Fuel Tank Capacity: 13 Liters
• Caster angle: 26.5°
• Trail: 95mm
• Steering angle: 41°
• Minimum Turning Radius: 2.6m
• Frame Type: Backbone
• Suspensions Front: Telescopic fork, 33.0mm
• Suspensions Rear: Unit swing
• Brakes Front: Hydraulic single disc brake,267mm
• Brakes Rear: Hydraulic single disc brake,245mm
• Tire Size Front: 120/70 15 M/C 56P tubeless
• Tire Size Rear: 140/70 14 M/C 62P tubeless
• Wheel Travel (front/rear): F:110mm/R:79mm
• Headlight, Auxiliary light: ALL LED
• Brake Light, Tail light: ALL LED
• Speedometer/Tachometer: Analogue
• Water temp meter/fuel gauge,clock: Digital
• Odometer/Tripmeter: Liquid Crystal
• Fuel Consumption indicator: Equiped
• Anti Lock Braking System: Equiped
• Traction Control System: Equiped
• Ignition system: TCI (Transistor Controlled Ignition)
• Battery Type: GTZ8V, 12V, 7.0AH(10HR)
